SANGAMO CHOICE 3 CHANNEL PROGRAMMER

SANGAMO CHOICE 3 CHANNEL PROGRAMMER

You need to be logged in to see prices.

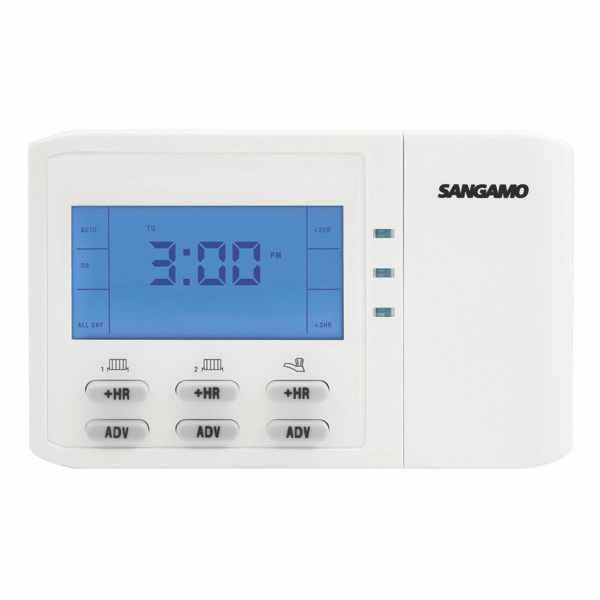

The Choice PR3n, a 3 channel programmer offers three completely independent time controlled channels. this is ideal for control of 2 individual heating zones and separate hot water control.

 The multi-channel capabilities enables installers to comply with Part L (Part J in Scotland and Part F in Northern Ireland) of the amended Building Regulations for dwellings over 150m² by providing separate time and heating control for living and sleeping areas whilst also providing timed control of hot water.

The programmer can be configured for 24 hour, 5/2 day or 7 day operation, and the flexibility of up to three on/off timings per day.


Power Supply: 230V AC, 50Hz

Operating Temperature: 0°C to 40°C

Total Switch Rating: 230V AC, 2(1)A (per channel)

Contact Type: 1B , Micro-Disconnection (Voltage Free)

Battery Type: Lithium Cell CR2032

Enclosure Protection: IP30

Plastics: Thermoplastic, flame retardant

Insulation Class: Double

Wiring: For fixed wiring only

Backplate: Industry standard

Dimensions: 140mm x 87mm x 37mm

Clock: 12 hour am/pm, 1 minute resolution, accuracy +/- 1.5 sec/day

BST/GMT time change: Automatic

Program Cycle: 24hr, 5/2day or 7day selectable

Program On/offs per day: 2on/off, 3on/off selectable

Program resolution: 10mins

Program Selection: Auto, On all day, On constant, off

Program Override: 1, 2 or 3 hour, Advance

Heating System: Pumped

Complies with: EN60730-1, EN60730-2.7, EMC Directive 2004/108/EC, LVD Directive 2006/95/EC

BrandSangamo
Heating Control TypeProgrammer
