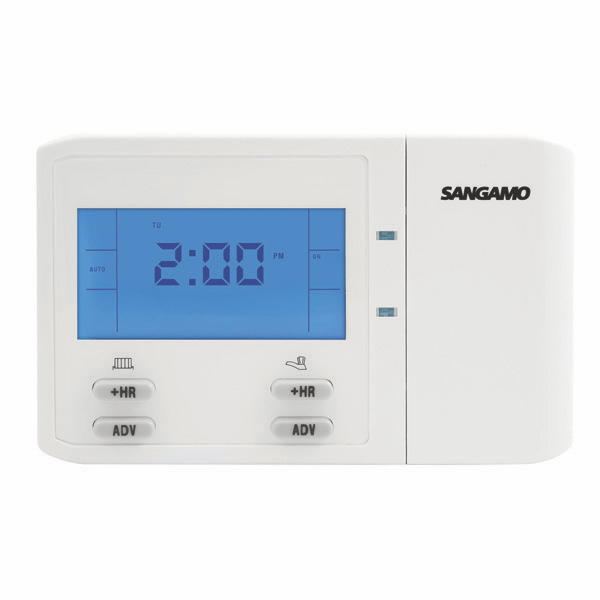

SANGAMO CHOICE 2 CHANNEL PROGRAMMER

Descriptions

The Choice PR2n 2 channel programmer is designed for separate control of you heating and stored hot water. The heating and hot water programmes are independent of each other. This gives you the opportunity to save money and control you heating in the most energy saving manner possible.The programmer can be configured for 24 hour, 5/2 day or 7 day operation, and the flexibility of up to three on/off timings per day.

Pre-programmed but can easily be changed to suit your particular lifestyle. Large and clear to read illuminated display. Attractive modern design that will suit all contemporary homes.Suitable for pumped and gravity fed systems.

For fully pumped central heating systems using mid position valves, spring return valves or power open, power closed valves or Gravity hot water pumped heating systems with or without motorised valves fitted into the domestic hot water primary circuit.

Power Supply: 230V AC, 50Hz

Operating Temperature: 0°C to 40°C

Switch Rating: 230V AC, 2(1)Amp (per channel)

Contact Type: 1B , Micro-Disconnection

Battery Type: Lithium Cell CR2032

Enclosure Protection: IP30

Plastics: Thermoplastic, flame retardant

Insulation Class: Double

Wiring: For fixed wiring only

Backplate: Industry standard

Dimensions: 140mm x 87mm x 37mm Clock: 12 hour am/pm, 1 minute resolution, accuracy +/- 1.5 sec/day

BST/GMT time change: Automatic
