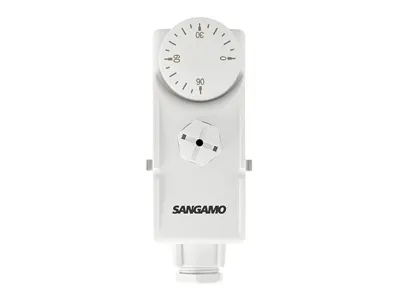

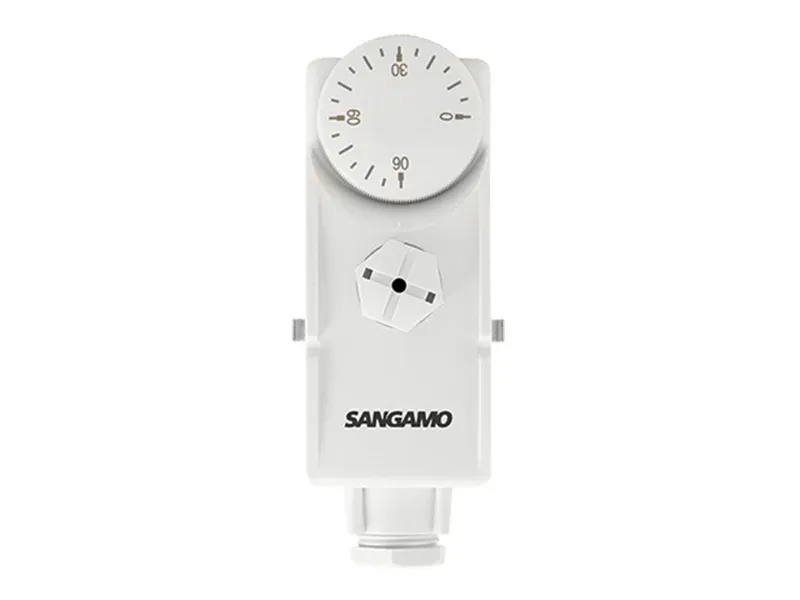

SANGAMO CYLINDER THERMOSTAT

Descriptions

The Sangamo Choice Cylinder thermostat is suitable for all hot water tanks and cylinders. Supplied complete with a mounting strap, this unit is very easy to fit around the tank and is also suitable for mounting on heating pipes. The bimetallic sensor ensures accurate hot water temperature control. While the large clear adjustment knob is easy to read and is adjustable between 0ºC and 90ºC.

The cylinder thermostat is designed for surface mounting on domestic hot water cylinders. It can be used to switch directly a wet central heating circulating boiler or to operate zone valves.

Switch Action: SPPT Type 1CL
Switch Rating: 16(4) Amp, 230 Vac
Sensing Element: Bi-metal
Temperature setting Range: 0°C to 90°C
Current Rating: 16(4) Amp
Differential: Approx 10°C, not adjustable
Max Surface Temperature: 110°C
Protection: IP40
Fixing: Plastic coated spring wire (1800mm) with hooks
