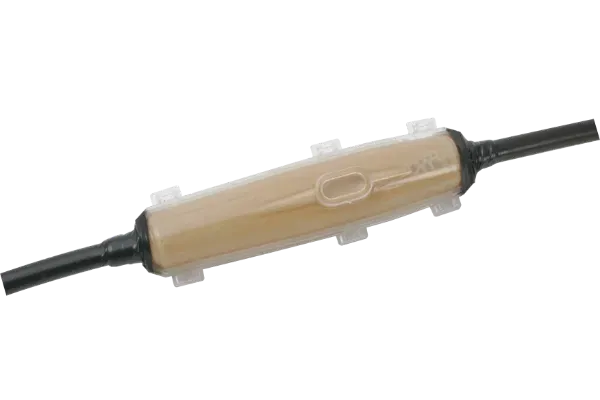

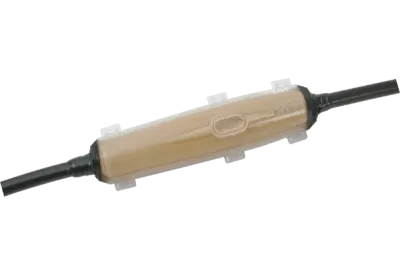

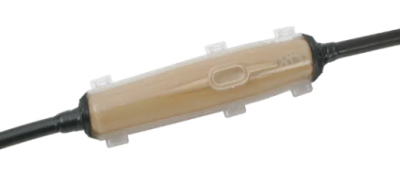

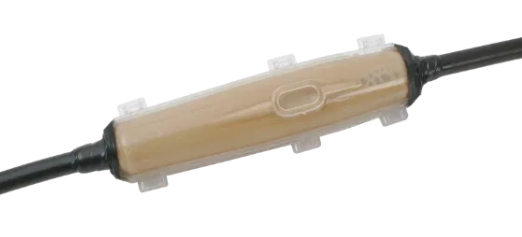

Termtech 25-50mm² (3/4 core) Joint Kit, Complete with Connectors

Termtech 25-50mm² (3/4 core) Joint Kit, Complete with Connectors

You need to be logged in to see prices.

Our straight resin joint kits are ideal for joining cables together where a cable has been damaged or replaced.

Supplied with click together moulds and two part polyurethane resin for insulation making the installation as easy as possible.

Technical Information:

Cable Size Acceptance: 25mm²-50mm² Cross-section (3/4 Core)

Cable Diameter Acceptance: 18mm-30mm Ø

Voltage Rating: 3.6kV

Connectors Included: 4x BS25, 4x BS35, 4x BS50

Suitable for single and multiple polymeric and paper cables both stranded and solid copper/aluminium connectors.

Performance tested to BS6910/HD623 / VDE0278


Length: 360mm
Width: 80mm
Height: 77mm
