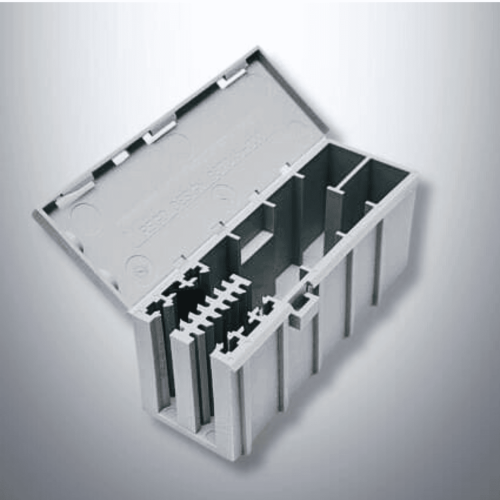

Connexbox® Classic for multicore cables; 222 and 773 series; 222 and 773 series; max. 4 mm² connectors 39x44x108mm

Connexbox® Classic for multicore cables; 222 and 773 series; 222 and 773 series; max. 4 mm² connectors 39x44x108mm

You need to be logged in to see prices.

The original, game-changing junction box.

Purpose-built for Wago® 222 and 773 connectors, the Connexbox Classic makes every job simpler, quicker and safer.

Cables can be connected outside the enclosure, so there’s no fiddling in cramped spaces, and its compact size means the Classic fits easily through a 60 mm spotlight hole.
It can handle up to six cables, and adjustable clamps secure flex and twin & earth from 1.0 to 6.0 mm, while robust grippers hold cables up to 8.0 mm in diameter. You can even mix Wago 222 and 773 connectors for up to 24 terminations.

Built to last and fully compliant with BS EN 60670-22 and the 18th Edition BS 7671, the Connexbox Classic delivers speed, flexibility, and professional results every time.


Standards : BS 7671 : 2018BS EN 60670-22BS 5733 (Maintenance Free)
 Ingress Protection: IP2X
 Dimensions: (L) 108 mm x (W)34 mm x (D)42 mm
 Cable Sizes: 3 x 6.0mm² Twin & Earth or 4 x 4.0mm² Twin & Earth or 6 x 1.0, 1.5 or 2.5mm² Twin & Earth or 6 x 1.0 or 1.5mm² 3-core & Earth. 6 x Flex up to 8mm
 Connector Suitability: Wago® 221-4mm series
 Current / Voltage Rating: Up to 41A / 400V/4KV
