Wago PUSH WIRE® Inline Splicing Connector 4 mm² 2-conductor (32a rated)

Wago PUSH WIRE® Inline Splicing Connector 4 mm² 2-conductor (32a rated)

You need to be logged in to see prices.

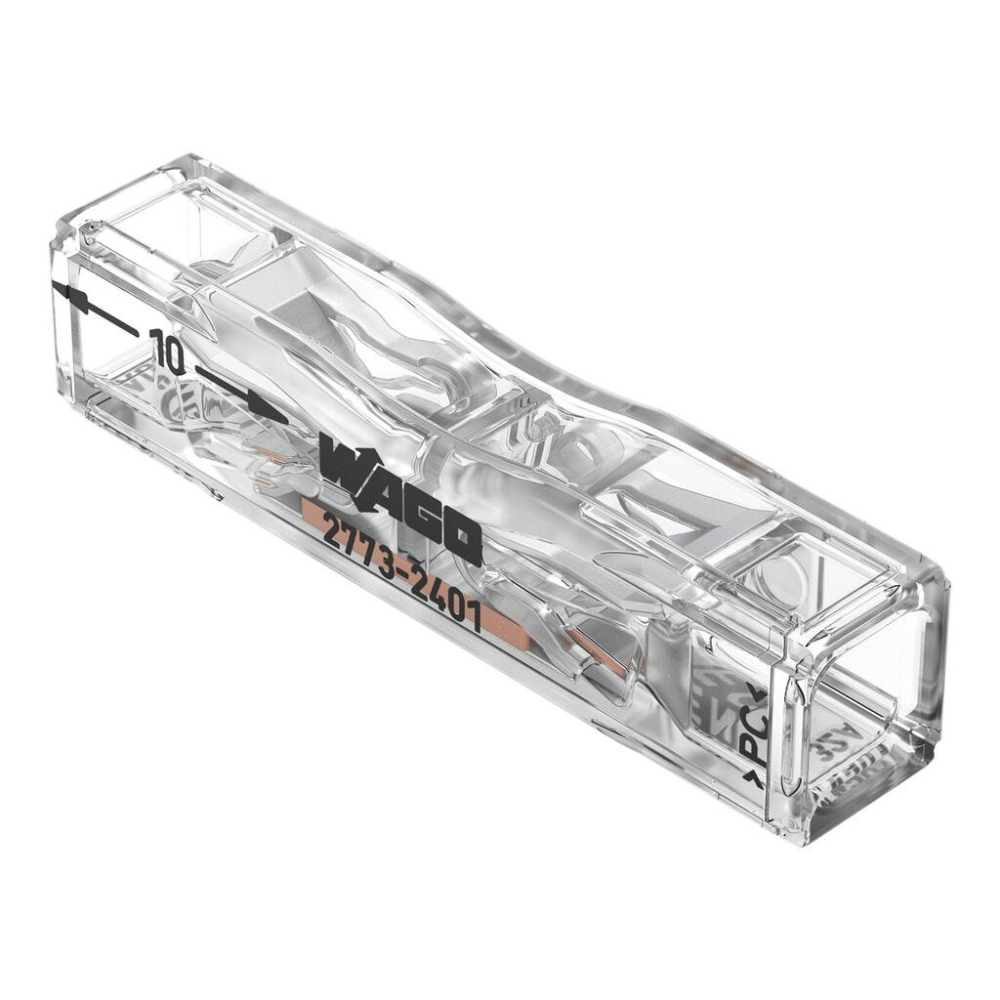

Our push wire® inline splicing connector (item number 2773-2401) is designed for seamless electrical installations. The 2773 Series PUSH WIRE® connectors for junction boxes provide safe, quick, and easy installations in any building, regardless of the complexity. Rated current and voltage are important parameters when choosing a splicing connector, as they determine the product's suitability for different applications. This product has a rated voltage of 450 V and a rated current of 32 A, making it suitable for high-load applications. Conductors should only be connected to push wire® inline splicing connector if their strip length is between 10 mm and 11 mm. This product incorporates conductor terminals and utilizes PUSH WIRE®. Our reliable PUSH WIRE® connection offers the fastest method for clamping conductors. It utilizes the conductor's stiffness to overcome the clamping spring's contact force. The item's dimensions are 6.15 x 6.8 x 29.5 mm (width x height x depth). Push wire® inline splicing connector is suitable for conductor cross sections ranging from 0.75 mm² to 4 mm². The contact surface is coated with tin.


Terminal Size4mm
Amp Rating32 amp
ConductorsIn-Line
