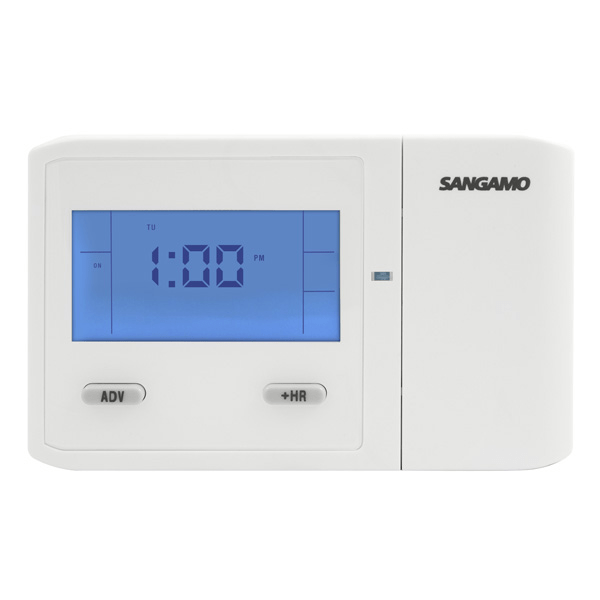

SANGAMO CHOICE 1 CHANNEL PROGRAMMER

Descriptions

The Choice PR1n is a 1 channel programmer, designed primarily for timed control of your heating and hot water. Ideal for use with a combination (combi) boiler. The programmer can be configured for 24 hour, 5/2 day or 7 day operation with the flexibility of up to three on/off timings per day.

Pre-programmed but can easily be changed to suit your particular lifestyle. Large and clear to read illuminated display. Attractive modern design that will suit all contemporary homes. Can also be used in conjunction with an existing programmer to control additional heating zones or for when additional hot water cylinder control is required.

Power Supply: 230V AC, 50Hz

Operating Temperature: 0°C to 40°C

Total Switch Rating: 230V AC, 2(1)Amp

Contact Type: 1B , Micro-Disconnection (Voltage Free)

Battery Type: Lithium Cell CR2032

Enclosure Protection: IP30

Plastics: Thermoplastic, flame retardant

Insulation Class: Double

Wiring: For fixed wiring only

Backplate: Industry standard

Dimensions: 140mm x 87mm x 37mm

Clock: 12 hour am/pm, 1 minute resolution, accuracy +/- 1.5 sec/day
