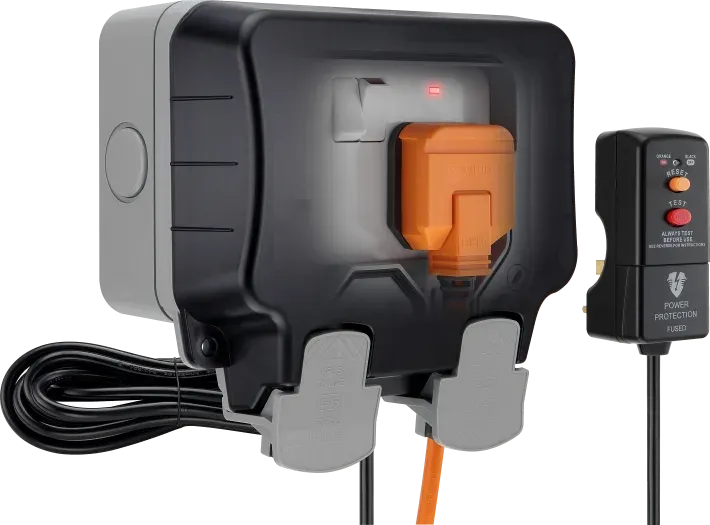

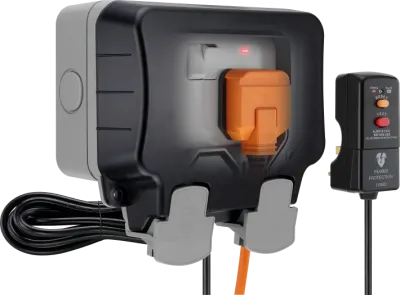

BG Nexus Storm 13a 2gang Switched Socket c/w 3m flex & RCD Plug

BG Nexus Storm 13a 2gang Switched Socket c/w 3m flex & RCD Plug

You need to be logged in to see prices.

Features:

• IP66 rated when in use

• Colour coded terminals with backed out captive screws for easy installation

• Cover will stay open to allow for easy access to sockets

• See-through cover allows status of switches to be seen

• RCD plug - non-latching type

• Suitable for temporary installation only

• 30mA trip current, 40mS trip speed

• Fast fix - no separate screws, no screw covers, 150º rotation

• Patented cable entry - prevents accidental opening of cover by pulling of connected cable

• Large open/closer paddles for easier operation, flush fit to prevent accidental damage

• Cable entries in the 4 sides have removable blanking caps except for the middle entry on the bottom face which is prewired with a cable gland. 1 drill out entry 20/25mm in rear face

• Socket is prewired with 3m of 3 core 1.25mm² black flex to BS6500, the end of cable is prepared for wiring direct to the RCD plug

• 2 Earth terminals in socket, 1 Earth terminal in mounting box

No detailed specifications are available for this product.

There are no downloads for this product.
