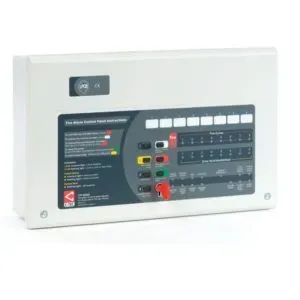

CTec CFP Standard 2 Zone Conventional Fire Alarm Panel

Descriptions

Certified to EN54 parts 2, 4 and 13, C-TEC’s CFP 2 zone conventional fire alarm panel offers an array of user and installer-friendly features at a very competitive price.

Supplied in an attractive flush or surface mountable plastic enclosure, it includes two detector zones, four conventional sounder circuits, class change and alert inputs, on-board fire and fault relays and combined keypad/keyswitch entry.

A wide range of engineering functions are also provided including selectable zone delays, coincidence and non-latching zone facilities. Comprehensive test and fault finding facilities are also provided.

Optional repeaters and relay expansion boards also available.

Third-party certified to EN54 parts 2 and 4 by the Loss Prevention Certification Board (LPCB).
Intuitive user-friendly interface with colour-coded buttons and combined keypad/keyswitch entry.
Manufactured by C-TEC in the UK.
Four AlarmSense zone circuits – compatible with Apollo’s AlarmSense detectors, call points, sounders and visual indicators.
Four conventional sounder circuits.
Integral 1.5A EN54-4/A2 compliant switch mode PSU.
Wide range of engineering functions including zone test, coincidence, zone delay and non-latching zones.
Two on-board relays (Fire and Fault).
Two open-collector outputs (Remote and Reset).
‘Class change’ and alert inputs.
Installer-friendly design.
Attractive flush or surface mountable plastic lid and enclosure – no bezel required.
Low 25mA quiescent current.
Multiple indicators.
System expansion connections provided for up to eight two-wire repeaters (one CFP761 network card required per system).
Space for two x 12V 3.3Ah VRLA batteries.
