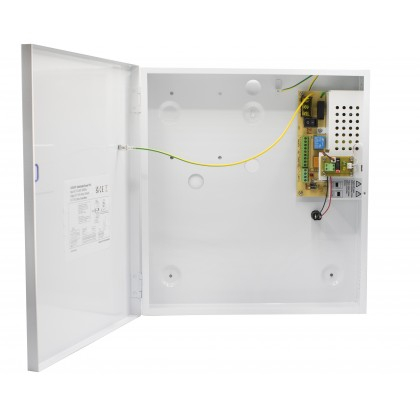

12v or 24VDC Selectable power supply offering 4 or 2 Amps of power, one output

Input: 100~240Vac 50~60Hz

Main Fuse: F3A  Mains Output 12V Mode: 13.2~14.0vdc (13.8vdc nominal), Max 4 Amp

Mains Output 24V Mode : 27.0~28.0vdc, (27.6vdc nominal), Max 2Amp

Battery Output 12V Mode: 10.5~12.4vdc

Battery Output 24V Mode:21.0 ~ 24.7vdc

Additional Outputs: Mains and Independent relays

Charge current: 0.7A max

Charger fuse: 0.5A PTC

Panel Indicators: Mains/Fault

Output Fuse: F4A @12v default, change to F2A @24v

Number of Outputs: 1 x 4 amp in 12v mode

Protection: Over-current/ Over-load/ Over-charge/Over-discharge

Battery Capacity: 2 x 12v/ 7Ah Max

Tamper: Front and Rear  Dimensions: W 330 x H 365 x D 85 mm

Warranty: 3 Years

Accessories: Fuses 1x8A, 1x4A, 1x3A, 1x2A 1x PG11 Gland, 2x M20 Rubber Grommets, 4x Plastic Sticky Grommets 1x Battery Jumper Lead
